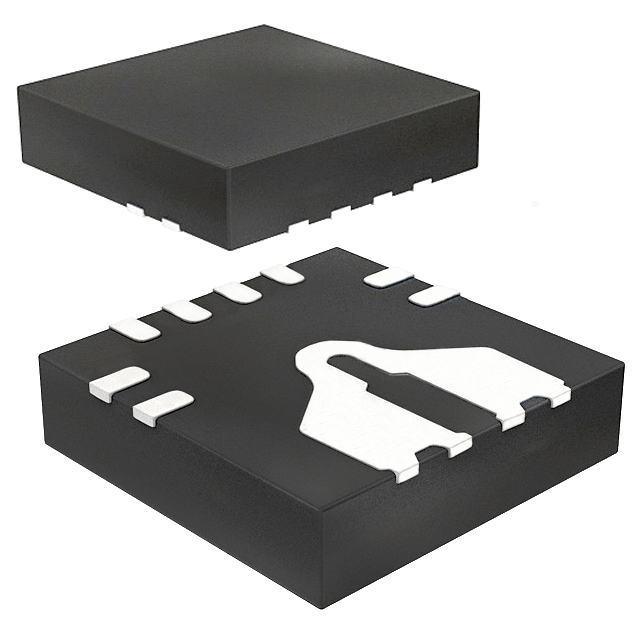

ACS711EEXLT-15AB-T

SKU: 45810

Manufacturer: Allegro MicroSystems

Open Loop Current Sensor AC/DC Current 3.3V 12-Pin QFN EP T/R

9310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Open Loop
Module/IC Classification	IC
Sensing Current Type	AC
Typical RMS Primary Current (A)	±15.5
Accuracy (%)	±5
Typical Response Time (us)	4.6
Maximum Output Voltage (V)	7
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Sensitivity (mV/A)	90
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	12
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75
Package Length	3
Package Width	3
PCB changed	12
