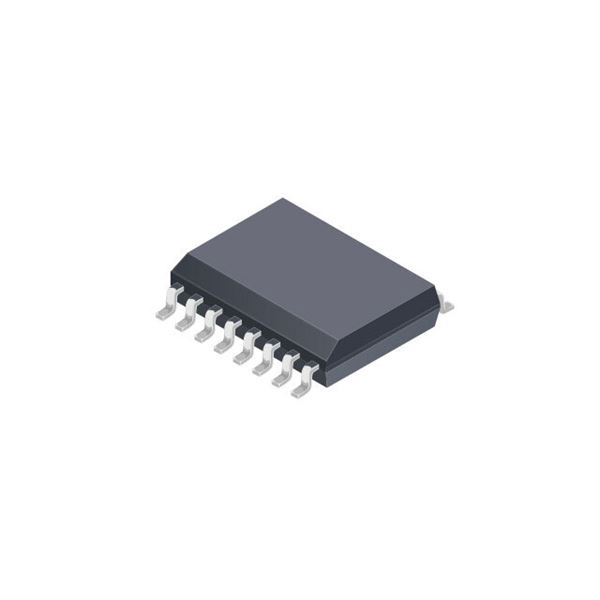

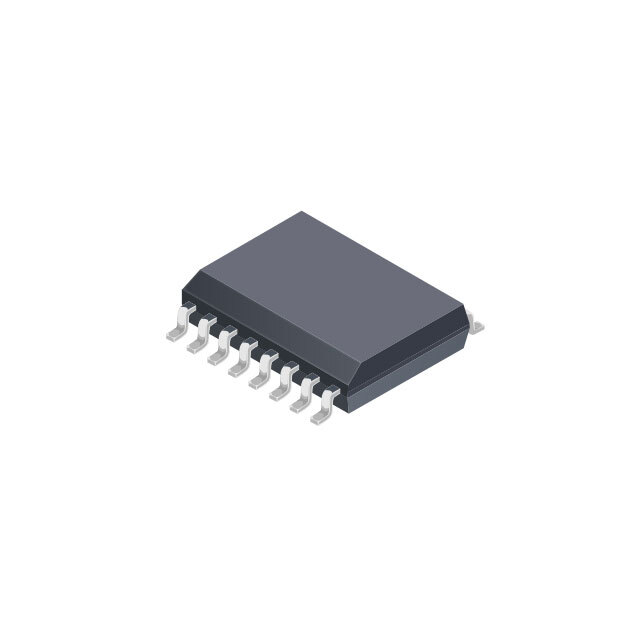

ACS710KLATR-25CB-T

SKU: 151929

Manufacturer: Allegro MicroSystems

Current Sensor Current Sensor AC/DC Current 3.3V/5V 16-Pin SOIC W T/R

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Open Loop
Module/IC Classification	IC
Sensing Current Type	DC
Typical RMS Primary Current (A)	±25
Accuracy (%)	±5.2
Typical Response Time (us)	4
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Sensitivity (mV/A)	28
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
PCB changed	16
