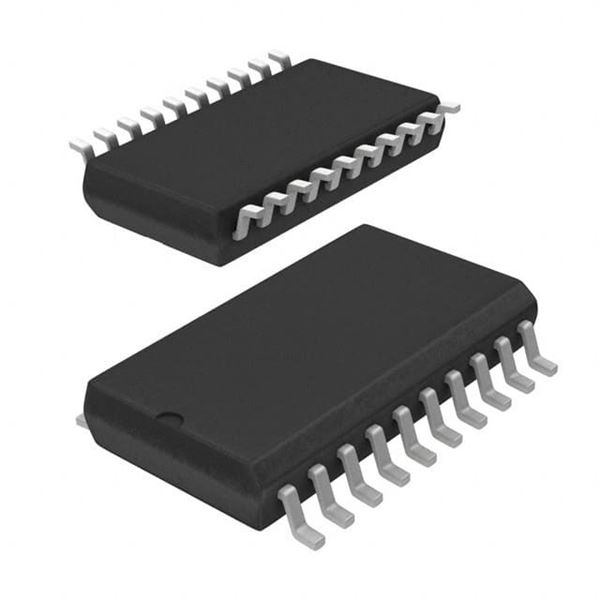

A6841SLW-T

SKU: 116391

Manufacturer: Allegro MicroSystems

Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 20-Pin SOIC W T/R

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Function	Shift Register/Latch/Driver
Operation Mode	Serial to Serial/Parallel
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	9
Number of Stages	8
Direction Type	Uni-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	50(Typ)@3V to 5.5V
Absolute Propagation Delay Time (ns)	1000
Process Technology	DABiC-5
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	30
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Original Package	SOIC W
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	12.8
Package Width	7.5
PCB changed	20
