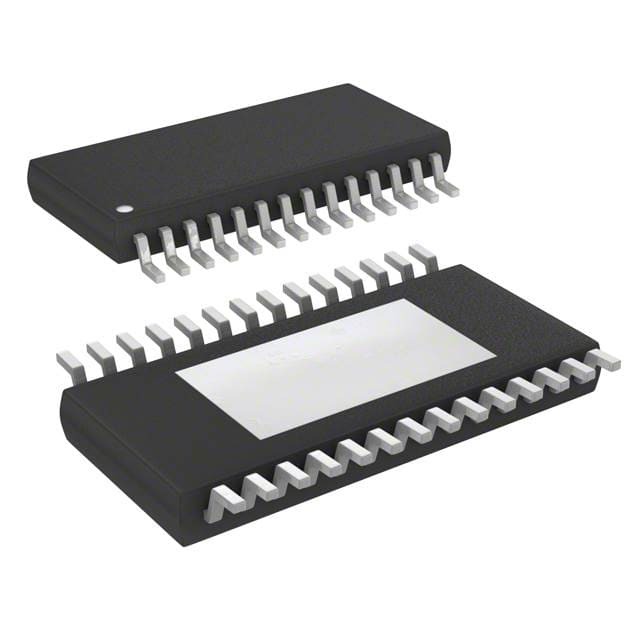

A5977GLPTR-T

SKU: 80995

Manufacturer: Allegro MicroSystems

Dual Full Bridge Motor Driver 28-Pin TSSOP EP T/R

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Step Modes	1, 1/2, 1/4, 1/8
Control Interface	PWM
Output Configuration	Dual Full Bridge
Maximum Output Current (A)	2.8
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage (V)	3 to 5.5
Operating Supply Voltage-Max (V)	5.5
Shutdown Threshold (V)	2.7
Maximum Operating Current (mA)	12
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	TSSOP EP
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.7
Package Width	4.4
PCB changed	28
