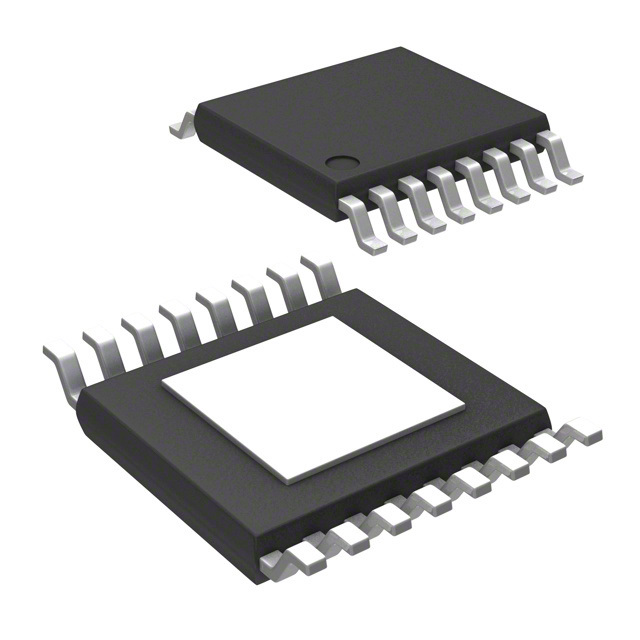

A5950GLPTR-T

SKU: 151906

Manufacturer: Allegro MicroSystems

Dual Half Bridge Motor Driver Automotive 16-Pin TSSOP EP T/R

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Motor Driver
Motor Type	DC Motor
Control Interface	PWM
Output Configuration	Dual Half Bridge
Output Voltage (V)	-2 to 42
Maximum Output Current (A)	3
Maximum Peak Output Current (A)	3
Operating Supply Voltage-Min (V)	5.5
Operating Supply Voltage (V)	5.5 to 40
Operating Supply Voltage-Max (V)	40
Maximum Operating Current (mA)	9
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	TSSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5
Package Width	4.4
PCB changed	16
