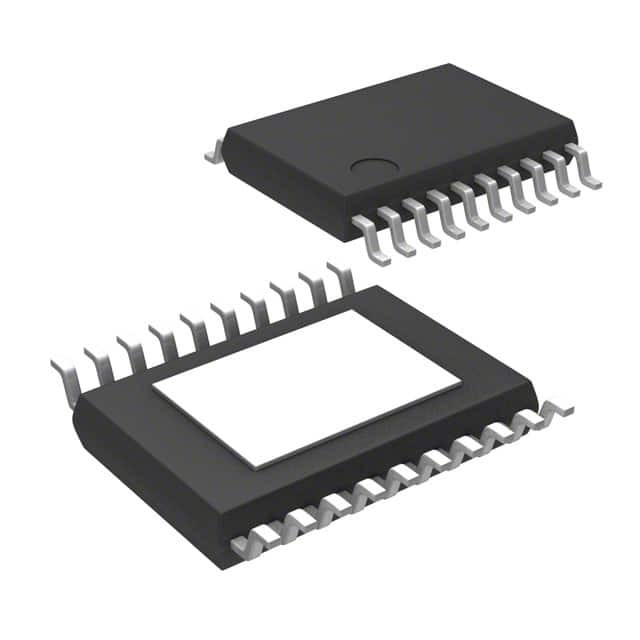

A4955KLPTR-T

SKU: 130646

Manufacturer: Allegro MicroSystems

Driver 1-OUT High and Low Side Full Brdg Automotive 20-Pin TSSOP EP T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Driver Type	High and Low Side
Bridge Type	Full Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	1
Operating Supply Voltage-Max (V)	50
Maximum Supply Current (mA)	10
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2(Min)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Special Features	Thermal Protection
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	TSSOP EP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.5
Package Width	4.4
PCB changed	20
