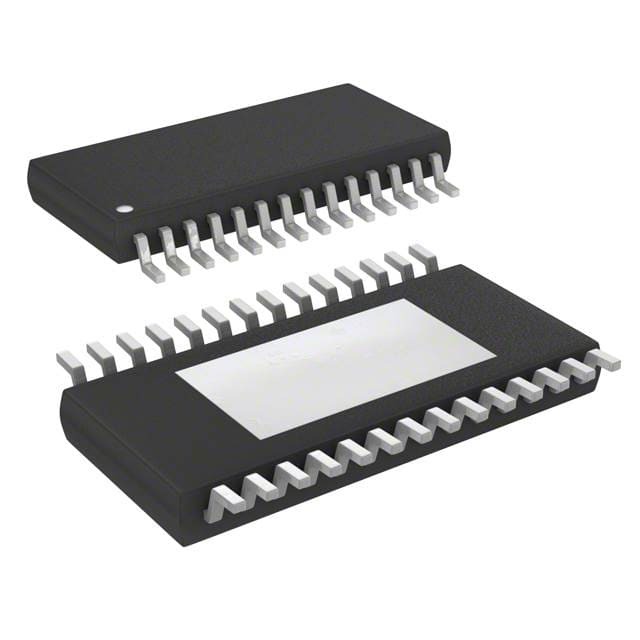

A4939KLPTR-T

SKU: 51231

Manufacturer: Allegro MicroSystems

Driver 6-OUT High and Low Side Automotive 28-Pin TSSOP EP T/R

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.2.a
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Driver Type	High and Low Side
Number of Drivers	6
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	6
Maximum Propagation Delay Time (ns)	180
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	5.5
Operating Supply Voltage-Max (V)	50
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2(Min)
Output Resistance (Ohm)	8
Operating Temperature-Min	-40
Operating Temperature-Max	150
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	35(Typ)
Maximum Turn-Off Delay Time (ns)	20(Typ)
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	TSSOP EP
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.7
Package Width	4.4
PCB changed	28
