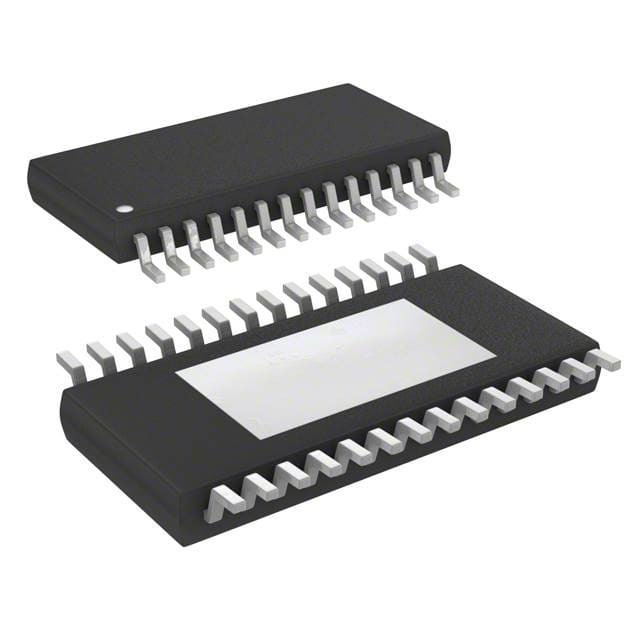

A3980KLPTR

SKU: 17444

Manufacturer: Allegro MicroSystems

Quad Half Bridge Motor Driver 5V Automotive 28-Pin TSSOP EP T/R

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	Motor Driver
Motor Type	Stepper Motor
Control Interface	PWM
Output Configuration	Quad Half Bridge
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage (V)	3 to 5.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Operating Current (mA)	12
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	SOP
Original Package	TSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.7
Package Width	4.4
PCB changed	28
