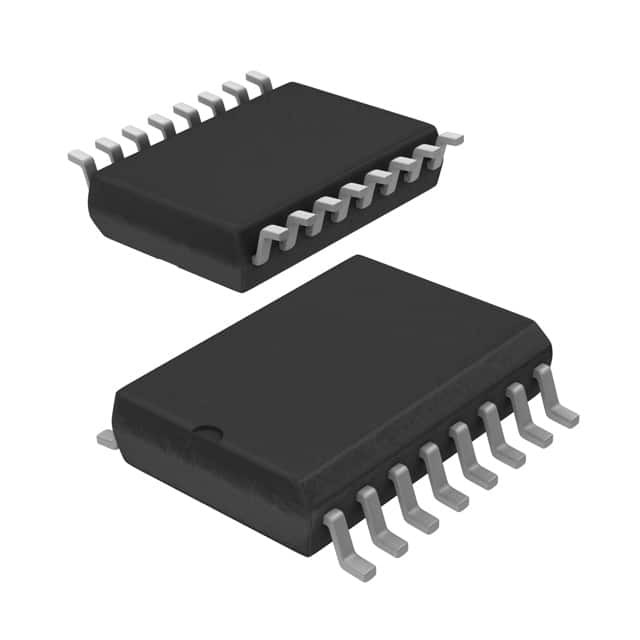

A3966SLBTR-T

SKU: 73974

Manufacturer: Allegro MicroSystems

Dual Full Bridge Motor Driver 16-Pin SOIC W T/R

7800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Control Interface	PWM
Output Configuration	Dual Full Bridge
Output Voltage (V)	30(Max)
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.5
Maximum Operating Current (mA)	50
Maximum Power Dissipation (mW)	1870
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
PCB changed	16
