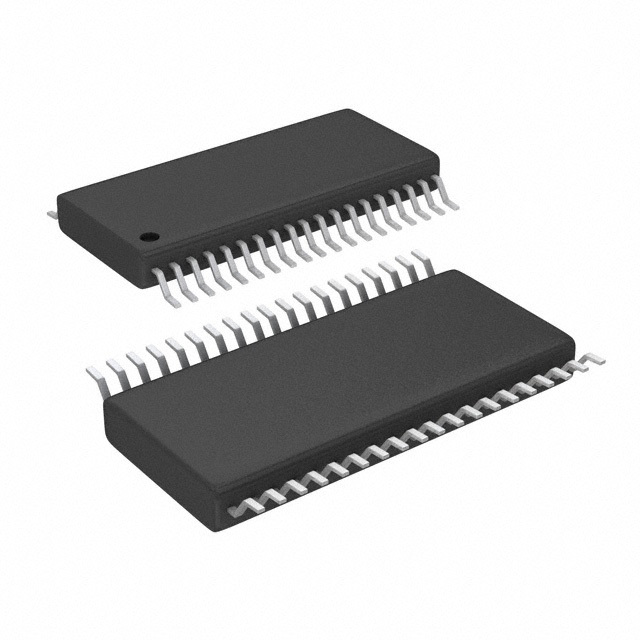

A3942KLGTR-T

SKU: 52907

Manufacturer: Allegro MicroSystems

Driver 1.2V 0.025A 4-OUT High Side Automotive 38-Pin TSSOP T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Number of Drivers	4
Number of Outputs	4
Maximum Propagation Delay Time (ns)	600(Typ)
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	60
Typical Input Low Threshold Voltage (V)	0(Min)
Peak Output Current (A)	0.025(Min)
Output Resistance (Ohm)	0.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Special Features	Thermal Protection
Maximum Turn-On Delay Time (ns)	22300
Latch-Up Proof	Yes
Packing Method	Tape and Reel
Pin Count	38
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.7
Package Width	4.4
PCB changed	38
