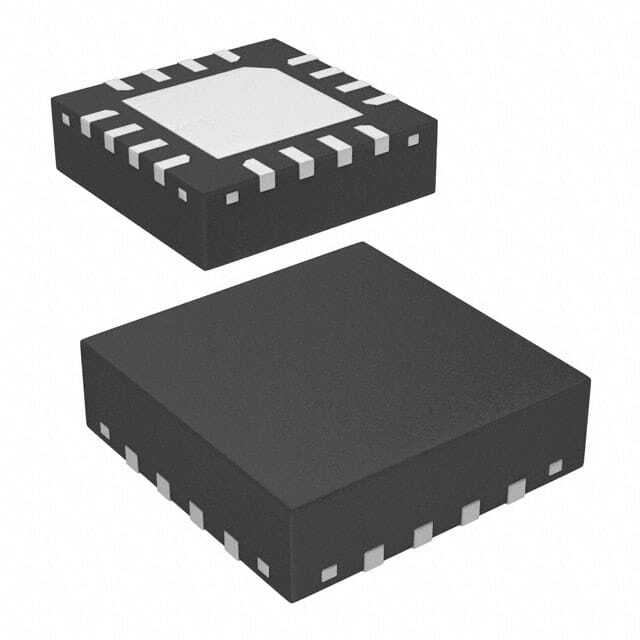

A3916GESTR-T

SKU: 116377

Manufacturer: Allegro MicroSystems

Quad Half Bridge Motor Driver 16-Pin QFN EP T/R

15250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Step Modes	1/2
Control Interface	PWM
Output Configuration	Quad Half Bridge
Maximum Output Current (A)	1
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage (V)	2.7 to 15
Operating Supply Voltage-Max (V)	15
Maximum Operating Current (mA)	4.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Length	3
Package Width	3
PCB changed	16
