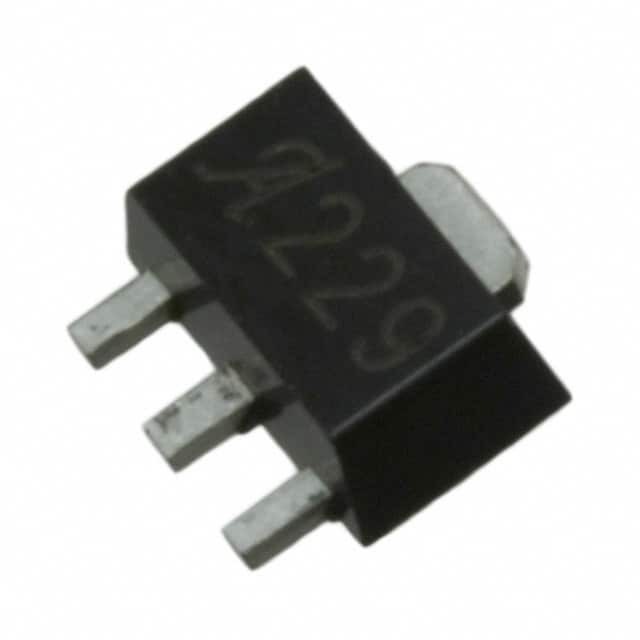

A1229LLTTR-T

SKU: 80979

Manufacturer: Allegro MicroSystems

Hall Effect Sensor 25mA Latch 5V/9V/12V/15V/18V 4-Pin(3+Tab) SOT-89 T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Latch
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-180
Typical Magnetic Sensor Hysteresis (Gs)	360(Max)
Maximum Magnetic Sensor Operating Point (Gs)	180
Typical Output Fall Time (us)	0.2
Maximum Output Current (mA)	25
Operating Supply Voltage-Min (V)	3.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	6000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Standard Package Method	SOT-89
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.47
Package Width	2.57
PCB changed	3
Tab	Tab
