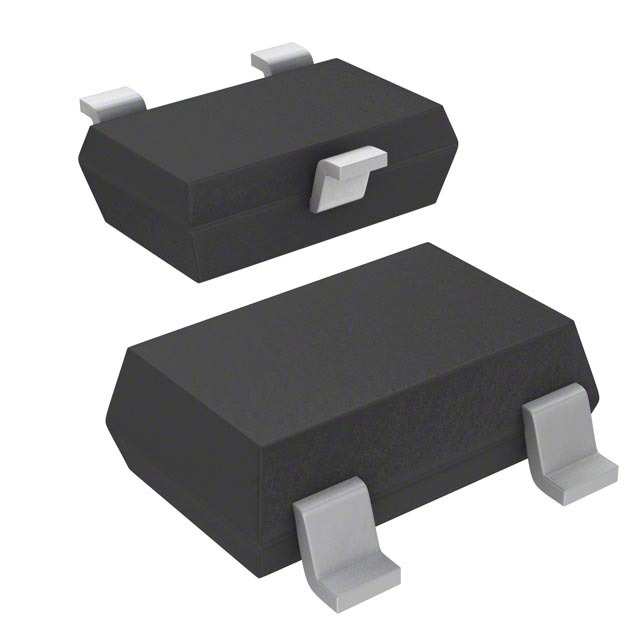

A1125LLHLT-T

SKU: 72321

Manufacturer: Allegro MicroSystems

Hall Effect Sensor 25mA Unipolar 3.3V/5V/9V/12V/15V/18V Automotive 3-Pin SOT-23W T/R

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	5
Typical Magnetic Sensor Hysteresis (Gs)	10
Maximum Magnetic Sensor Operating Point (Gs)	50
Typical Output Fall Time (us)	0.1
Maximum Output Current (mA)	25
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	4000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23W
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.98
Package Width	1.91
PCB changed	3
