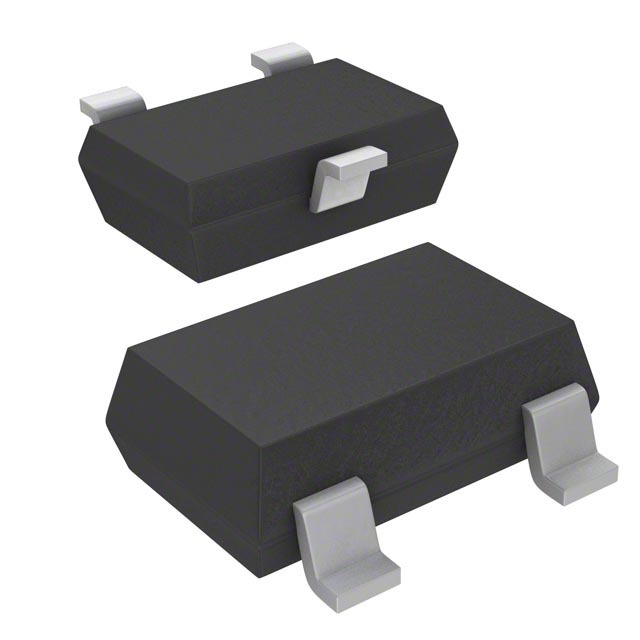

A1121ELHLX-T

SKU: 44082

Manufacturer: Allegro MicroSystems

Hall Effect Sensor 25mA Unipolar 3.3V/5V/9V/12V/15V/18V Automotive 3-Pin SOT-23W T/R

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Yes
PPAP	Unknown
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	40
Typical Magnetic Sensor Hysteresis (Gs)	25
Maximum Magnetic Sensor Operating Point (Gs)	135
Typical Output Fall Time (us)	0.1
Maximum Output Current (mA)	25
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	4000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT-23
Original Package	SOT-23W
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.98
Package Width	1.91
PCB changed	3
