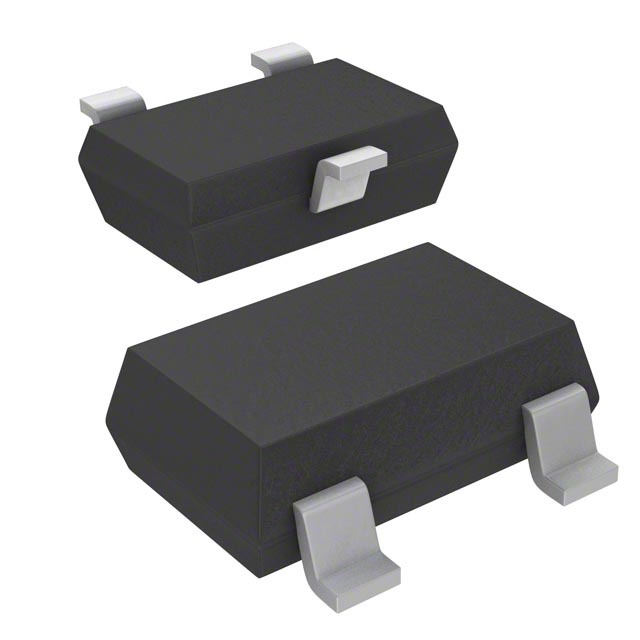

A1101LLHLX-T

SKU: 52899

Manufacturer: Allegro MicroSystems

Hall Effect Sensor 25mA Unipolar 5V/9V/12V/15V/18V Automotive 3-Pin SOT-23W T/R

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	10
Typical Magnetic Sensor Hysteresis (Gs)	55
Maximum Magnetic Sensor Operating Point (Gs)	160
Typical Output Fall Time (us)	0.4(Max)
Maximum Output Current (mA)	25
Operating Supply Voltage-Min (V)	3.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	7500
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-23W
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.98
Package Width	1.91
PCB changed	3
