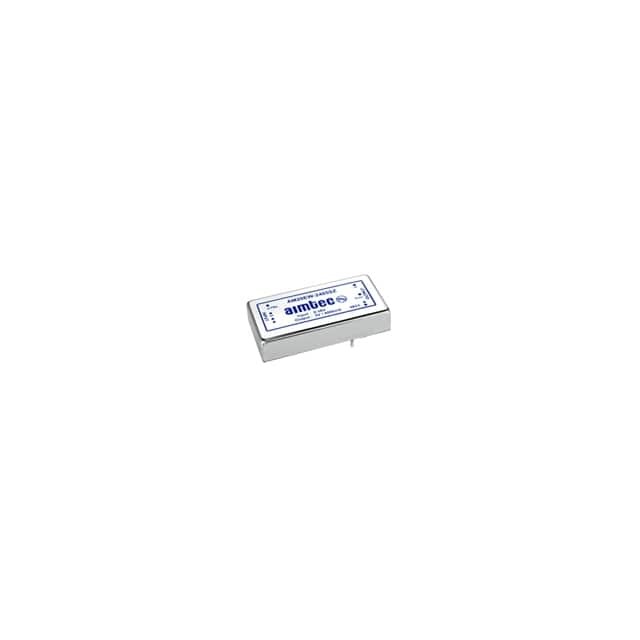

AM20EW-2403SZ Aimtec

AM20EW-2403SZ

SKU: 129068

Manufacturer: Aimtec

Module DC-DC 24VIN 1-OUT 3.3V 5.5A 20W 6-Pin Bulk

Download sample

Request Free Samples

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	21.6
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	26.4
Output Voltage (V)	3.3
Output Current (A)	5.5
Output Power (W)	20
Minimum Isolation Voltage	1000VDC
Switching Frequency (kHz)	330(Typ)
Switching Regulator	Yes
Load Regulation	0.5%(Typ)
Line Regulation	0.5%(Typ)
Efficiency (%)	89
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bulk
Output Type	Fixed
Pin Count	6
Terminal Form	Through Hole
Package Height	10.16
Package Length	50.8
Package Width	25.4
PCB changed	6
