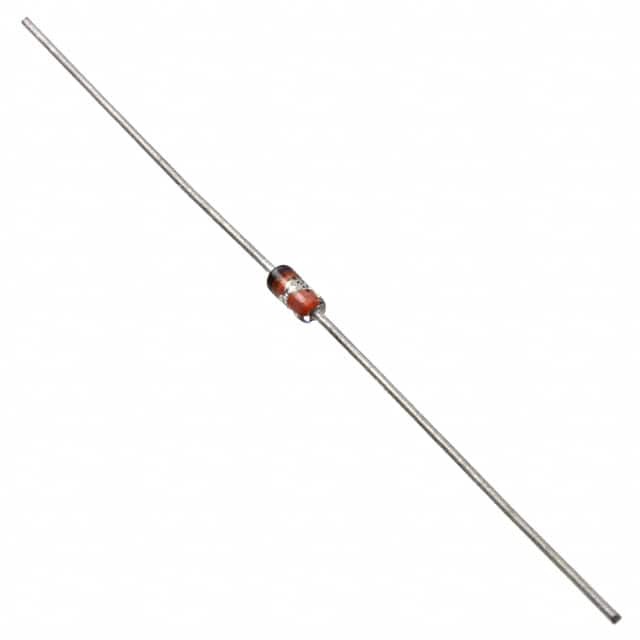

JANTX1N969B-1

SKU: 157904

Manufacturer: Aeroflex

Zener Diode Single 22V 5% 29Ohm 500mW 2-Pin DO-35

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	22
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	1.1
Maximum Power Dissipation (mW)	500
Test Current (mA)	5.6
Maximum Reverse Leakage Current (uA)	5000
Maximum Regulator Current (mA)	16
Maximum Zener Impedance (Ohm)	29
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Typical Voltage Temperature Coefficient	0.087%/°C(Max)
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	2.03(Max)
Terminal Form	Through Hole
Package Length	4.44(Max)
PCB changed	2
