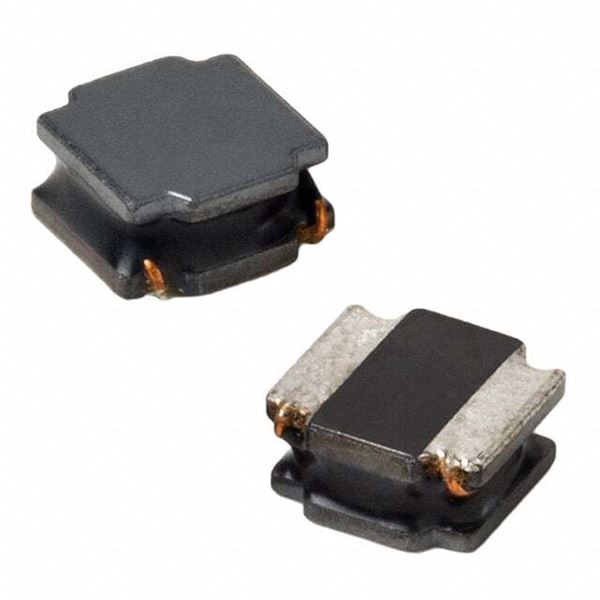

ASPI-8040S-180M-T

SKU: 95604

Manufacturer: Abracon

Inductor Power Shielded Wirewound 18uH 20% 100KHz 2.4A 0.053Ohm DCR 3131 T/R

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.10.00.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Inductance (H)	18u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.4
Maximum Saturation Current (A)	2.7
Maximum DC Resistance (Ohm)	0.053
Minimum Self Resonant Frequency (Hz)	11M
Number of Terminals	2
Case Size	3131
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.3
Terminal Form	Surface Mount
Depth (mm)	8.3
