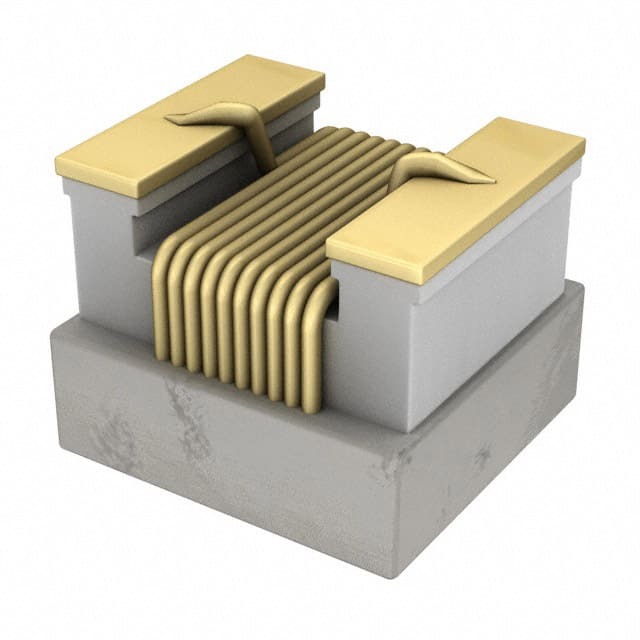

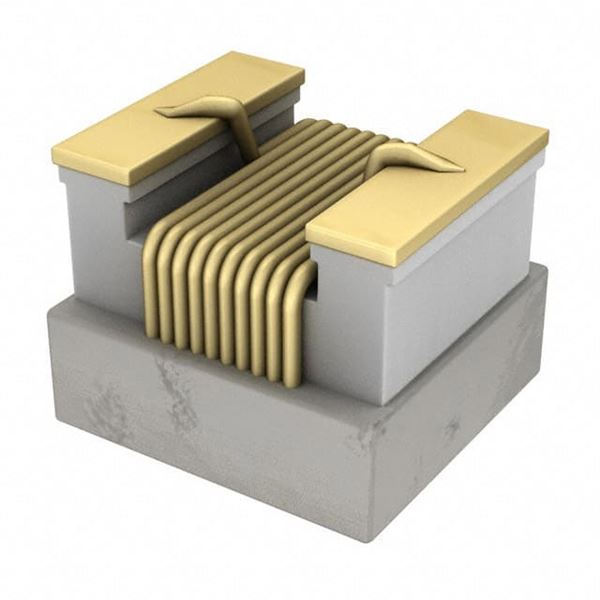

AISC-1008-2R2G-T

SKU: 123859

Manufacturer: Abracon

Inductor RF Wirewound 2.2uH 2% 7.9MHz 28Q-Factor Ceramic 0.28A 2.8Ohm DCR 1008 T/R

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.10.00.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	2.2u
Tolerance	2%
Inductance Test Frequency (Hz)	7.9M
Maximum DC Current (A)	0.28
Maximum DC Resistance (Ohm)	2.8
Minimum Quality Factor	28
Quality Test Frequency (Hz)	50M
Minimum Self Resonant Frequency (Hz)	100M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.92
Terminal Form	Surface Mount
Depth (mm)	2.79
