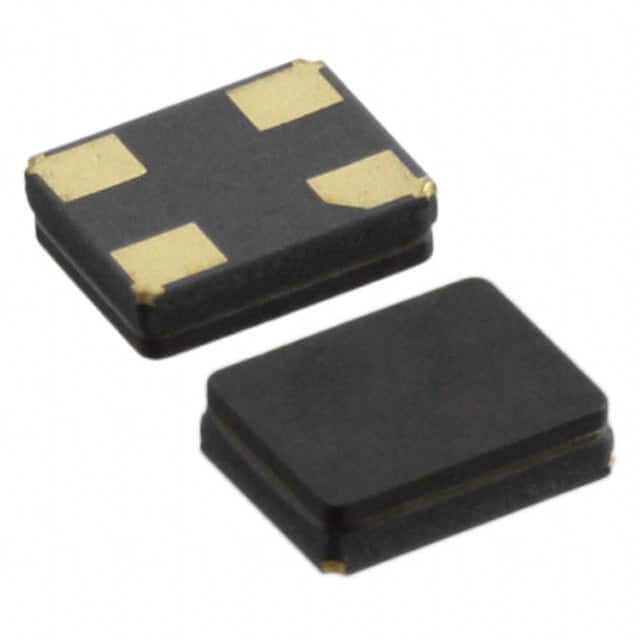

ABM8G-12.000MHZ-18-D2Y-T Abracon

ABM8G-12.000MHZ-18-D2Y-T

SKU: 31568

Manufacturer: Abracon

Crystal 12MHz ±20ppm (Tol) ±30ppm (Stability) 18pF FUND 120Ohm 4-Pin Ultra Mini-CSMD T/R

Download sample

Request Free Samples

41070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.60.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Typical Drive Level (uW)	10
Type	Crystal
Standard Frequency (MHz)	12
Frequency Tolerance (ppm)	±20
Frequency Stability (ppm)	±30
Frequency Aging (ppm/Year)	±3 (1st)
Load Capacitance (pF)	18
Series Resistance (Ohm)	120
Mode of Oscillation	Fundamental
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SMD
Original Package	Ultra Mini-CSMD
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.2
Package Width	2.5
PCB changed	4
