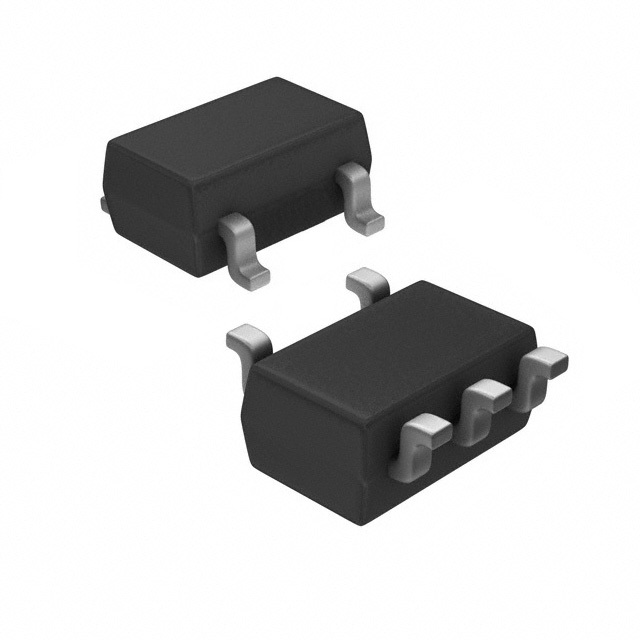

S-L2980A33MC-TF-G

SKU: 120523

Manufacturer: ABLIC Inc

LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R

75680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.15(Min)
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	0.14@50mA
Line Regulation	0.2%/V
Load Regulation	40mV
Maximum Power Dissipation (mW)	600
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
