S-89430ACMC-HBUT2U

SKU: 84891

Manufacturer: ABLIC Inc

MINI ANALOG SERIES 0.5 UA RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Minimum Single Supply Voltage (V)	0.9
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000001(Typ)@3V
Typical Input Bias Current (uA)	0.000001@3V
Typical Output Current (mA)	6@3V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.005@3V
Typical Voltage Gain (dB)	80
Minimum PSRR (dB)	70
Minimum CMRR (dB)	45
Minimum CMRR Range (dB)	<50
Typical Gain Bandwidth Product (MHz)	0.0048
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel

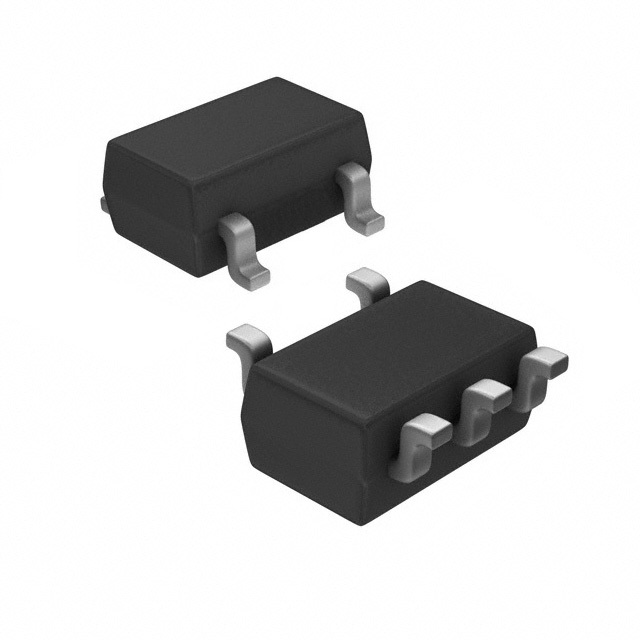

Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
