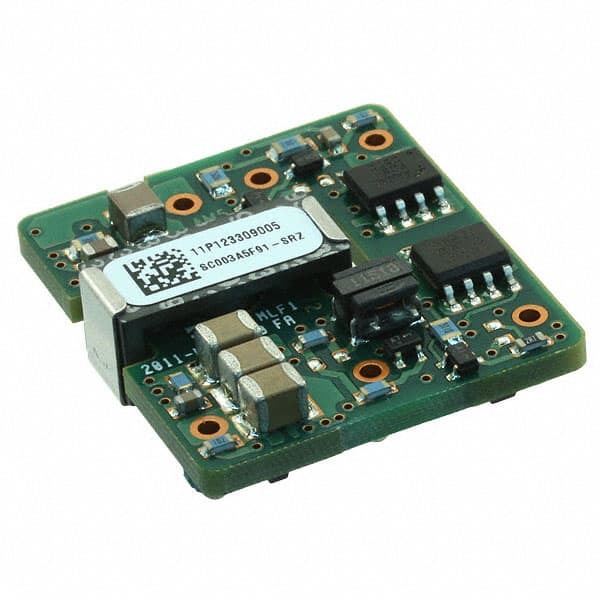

SC003A5F91-SRZ ABB

SC003A5F91-SRZ

SKU: 70820

Manufacturer: ABB

Module DC-DC 24VIN 1-OUT 3.3V 3.5A 6-Pin SMD Module T/R

Download sample

Request Free Samples

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	3.3
Output Current (A)	3.5
Minimum Isolation Voltage	2250VDC(Max)
Input/Output Type	DC/DC
Typical Standby Current (mA)	1(Max)
Switching Frequency (kHz)	440(Typ)
Switching Regulator	Yes
Load Regulation	0.2%Vo
Line Regulation	0.3%Vo
Efficiency (%)	85.5(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	7.9
Output Type	Fixed
Original Package	SMD Module
Pin Count	6
Terminal Form	Surface Mount
Package Length	27.9
Package Width	24.4
