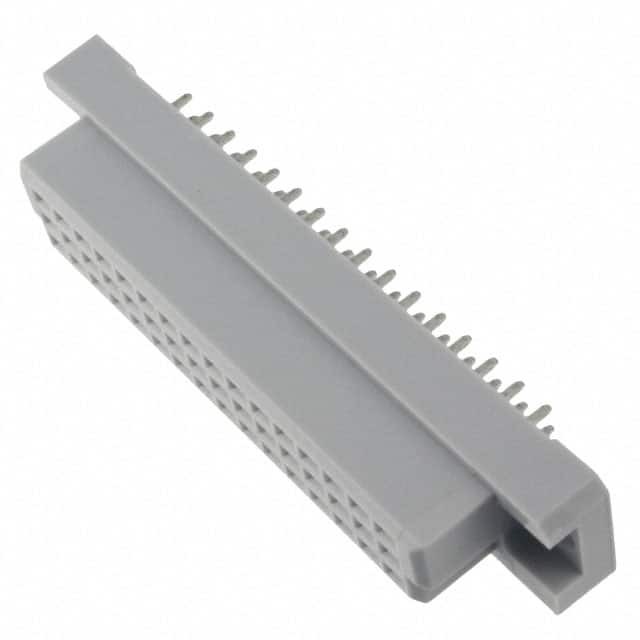

DIN-048CSC-S3L-HM

SKU: 110474

Manufacturer: 3M

Conn DIN 41612 SKT 48 POS 2.54mm Solder ST Thru-Hole Box

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	DIN 41612
Gender	SKT
Number of Contacts	48
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	1.5
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	54.4
Depth (mm)	10.5
Height (mm)	11.6
