12226-5150-00FR 3M

12226-5150-00FR

SKU: 121721

Manufacturer: 3M

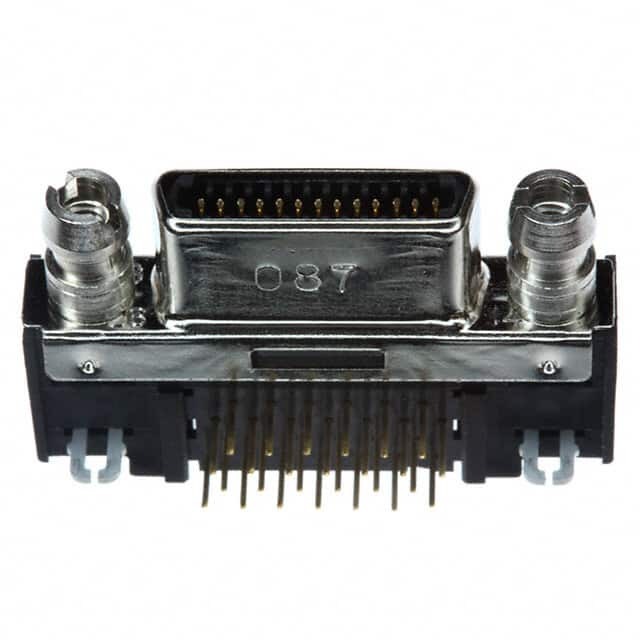

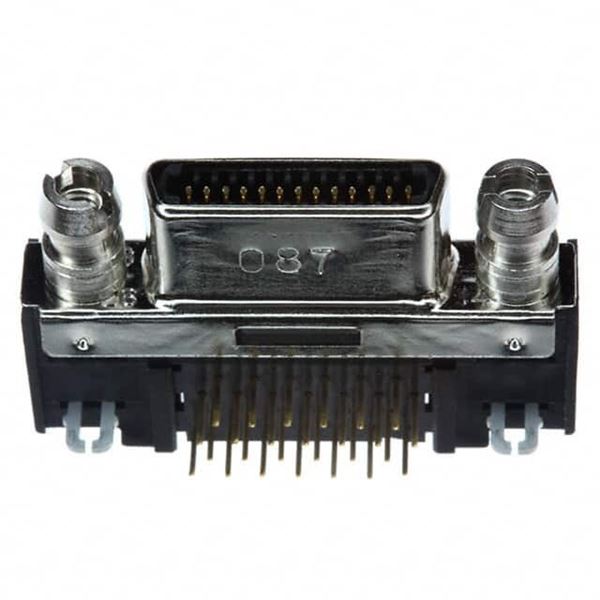

Conn Shrunk Delta Ribbon RCP 26 POS 1.6mm Solder RA Thru-Hole 26 Terminal 1 Port

Request Free Samples

870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Shrunk Delta Ribbon
Gender	RCP
Number of Terminals	26
Number of Contacts	26
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.6
Body Orientation	Right Angle
Current Rating-Max(A)	0.5
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-40
Operating Temperature-Max	70
Length (mm)	24.8
Depth (mm)	15.6
Height (mm)	5
Contact Plating	Gold Over Nickel
Contact Body Material	Copper Alloy
