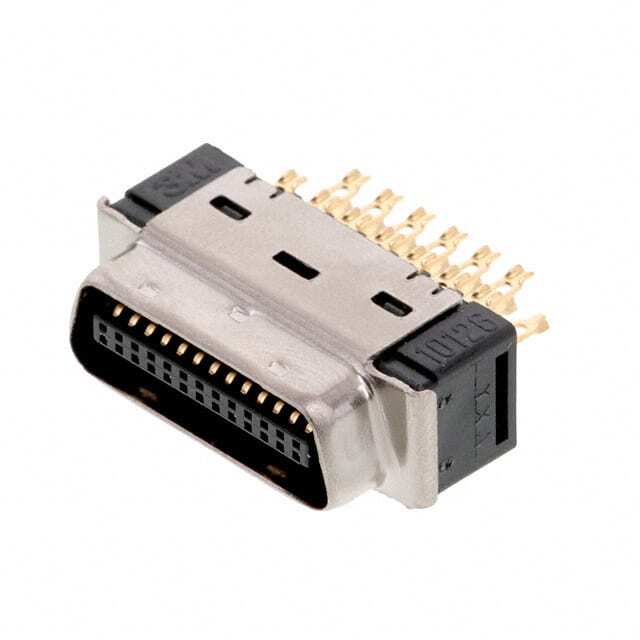

10126-3000PC 3M

10126-3000PC

SKU: 36847

Manufacturer: 3M

Conn Mini D Ribbon PL 26 POS 2.54mm Solder Cup ST Cable Mount 26 Terminal 1 Port Box

Download sample

Request Free Samples

1090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mini D Ribbon
Gender	PL
Number of Terminals	26
Number of Contacts	26
Number of Ports	1
Termination Method	Solder Cup
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	100
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	25.8
Depth (mm)	19.3
Height (mm)	9.1
Terminal Form	Cable Mount
Contact Plating	Gold Over Nickel
